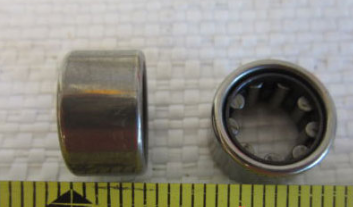

IKO Number: TA 1010Z

Mass (Ref.): 7.9 g

Assembled inner ring: IRT 710

Fw: 10 mm

D: 17 mm

C: 10 mm

Shaft dia. h6max.: 10 mm

Shaft dia. h6min.: 9.991 mm

Housing bore dia. J7max.: 17.01 mm

Housing bore dia. J7min.: 16.992 mm

Dynamic, C: 4.15 kN

Static, C0: 3.78 kN

Allowable rotational speed: 40000 rpm
